Toyota Camry: Doors

Unlocking and locking the doors from the outside

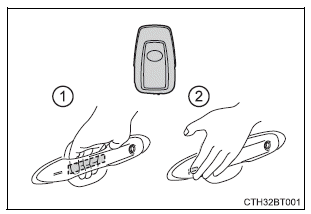

◆ Smart key system (if equipped)

Carry the electronic key to enable this function.

  1. Grip the driver's door handle to unlock the door. Holding the driver's door handle for approximately 2 seconds unlocks all the doors. Grip the front passenger's door handle to unlock all the doors.*
    Make sure to touch the sensor on the back of the handle.
  2. Touch the lock sensor (the indentation on the side of the door handle) to lock the doors.
    Check that the door is securely locked.

Opening, closing and locking the doors

*: The door unlock settings can be changed.

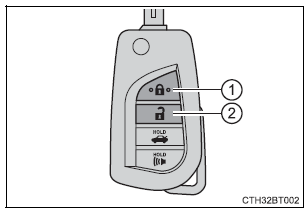

◆ Wireless remote control

Vehicles without a smart key system

Opening, closing and locking the doors

Vehicles with a smart key system

Opening, closing and locking the doors

  1. Locks all the doors
    Check that the door is securely locked.
  2. Unlocks all the doors
    Pressing the button unlocks the driver's door. Pressing the button again within 3 seconds unlocks the other doors.
    Press and hold to open the windows*1 and the moon roof*1, 2 or panoramic moon roof.*1, 2

*1: This setting must be customized at your Toyota dealer.
*2: If equipped

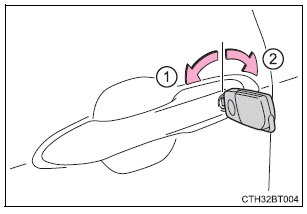

◆ Key

Turning the key operates the doors as follows:

Vehicles without a smart key system

  1. Locks all the doors
    Turn and hold to close the windows* 1 and moon roof.*1, 2
  2. Unlocks the door
    Turning the key unlocks the driver's door. Turning the key again unlocks the other doors.
    Turn and hold to open the windows*1 and moon roof.*1, 2

Opening, closing and locking the doors

*1: This setting must be customized at your Toyota dealer.
*2: If equipped

Vehicles with a smart key system

The doors can also be locked and unlocked with the mechanical key.

■Operation signals

Doors:

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Windows and moon roof or panoramic moon roof:

A buzzer sounds to indicate that the windows and moon roof or panoramic moon roof are operating.

■Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■When the door cannot be locked by the lock sensor on the surface of the door handle (vehicles with a smart key system)

When the door cannot be locked even if the lock sensor on the surface of the door handle is touched by a finger, touch the lock sensor with the palm.

When gloves are being worn, remove the gloves.

Opening, closing and locking the doors

■Door lock buzzer

If an attempt to lock the doors using the smart key system is made when a door is not fully closed, a buzzer sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle once more.

■Alarm

Locking the doors will set the alarm system.

■If the smart key system or the wireless remote control does not operate properly (vehicles with a smart key system)

Use the mechanical key to lock and unlock the doors.

Replace the key battery with a new one if it is depleted.

Unlocking and locking the doors from the inside

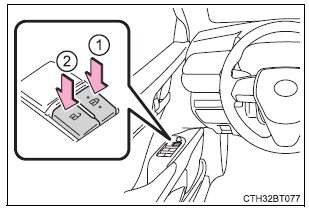

◆ Door lock switches

  1. Locks all the doors
  2. Unlocks all the doors

Opening, closing and locking the doors

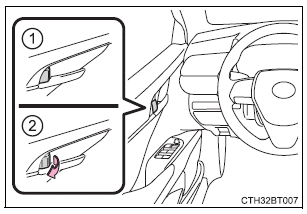

◆ Inside lock buttons

  1. Locks the door
  2. Unlocks the door

The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

Opening, closing and locking the doors

Locking the front doors from the outside without a key

1. Move the inside lock button to the lock position.

2. Close the door.

Vehicles without a smart key system

The door cannot be locked if either of the front doors is open and the key is in the engine switch.

Vehicles with a smart key system

The door cannot be locked if the engine switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

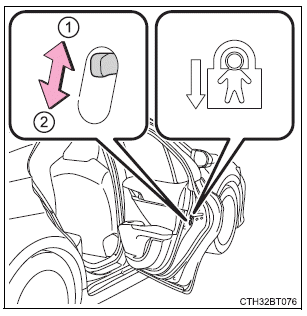

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the lock is set.

  1. Unlock
  2. Lock

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

Opening, closing and locking the doors
