Customizable features
Your vehicle includes a variety of electronic features that can be personalized to suit your preferences. The settings of these features can be changed using the multi-information display, on the audio system screen, or at your Toyota dealer.
Customizing vehicle features
When customizing vehicle features, ensure that the vehicle is parked in a safe place with the shift lever in P and the parking brake set.
â– Changing on the audio system screen
1. Press the "MENU" button.
2. Select "Setup" on the "Menu" screen.
3. Select "Vehicle" on the "Setup" screen.
4. Select "Vehicle Customization".
Various setting can be changed. Refer to the list of settings that can be changed for details.
Customizable features
Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details.
Definition of symbols: O = Available,
= Not available

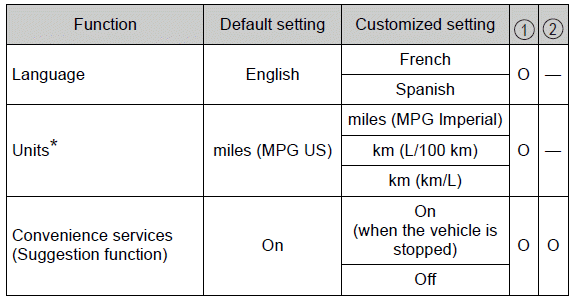

â– Gauges, meters and multi-information display
*: The default setting varies according to country.

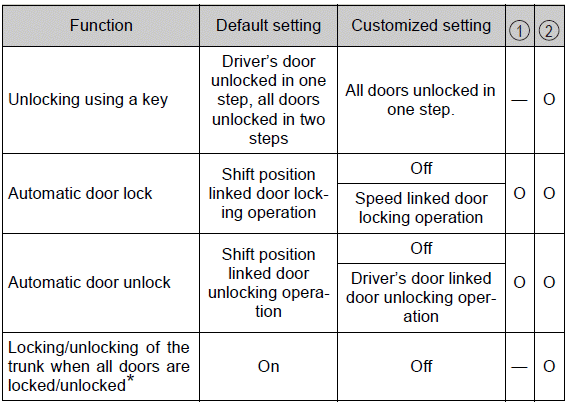

â– Door lock
*: Vehicles with a smart key system

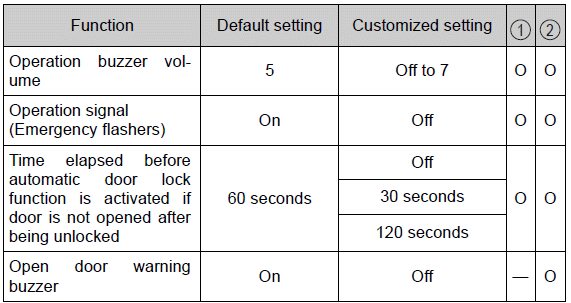

â– Smart key system* and wireless remote control
*: If equipped

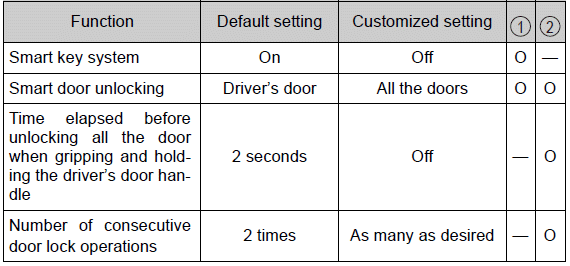

â– Smart key system*
*: If equipped

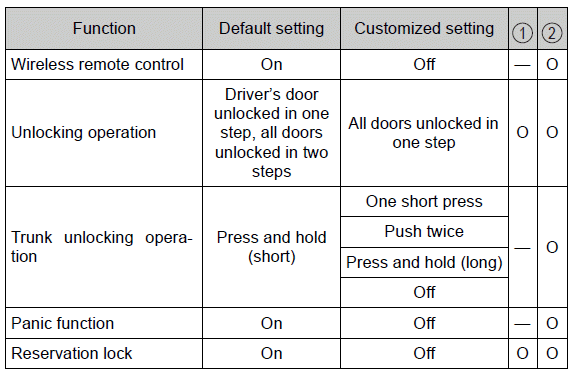

â– Wireless remote control

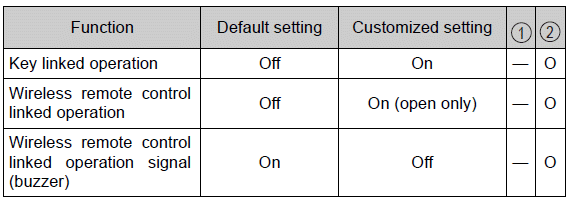

â– Power windows, and moon roof* or panoramic moon roof*
*: If equipped

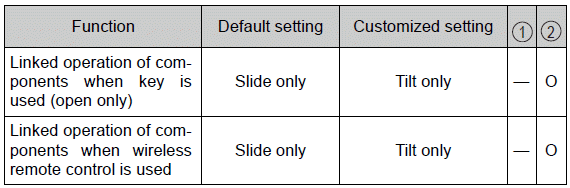

â– Moon roof*
*: If equipped

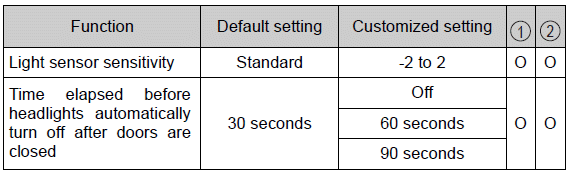

â– Automatic light control system

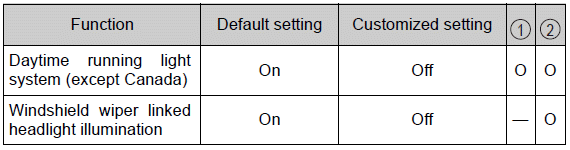

â– Lights

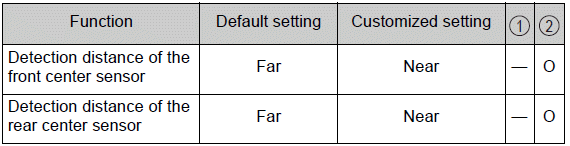

â– Intuitive parking assist*
*: If equipped

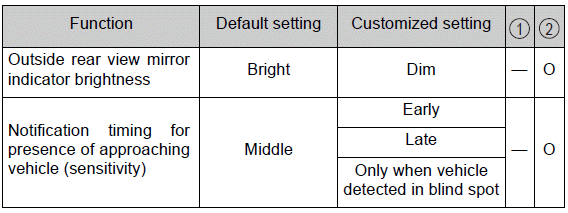

â– BSM (Blind Spot Monitor)*
*: If equipped

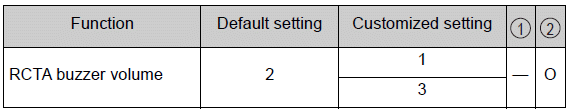

â– RCTA (Rear Cross Traffic Alert)*
*: If equipped
â– Automatic air conditioning system*
*: If equipped

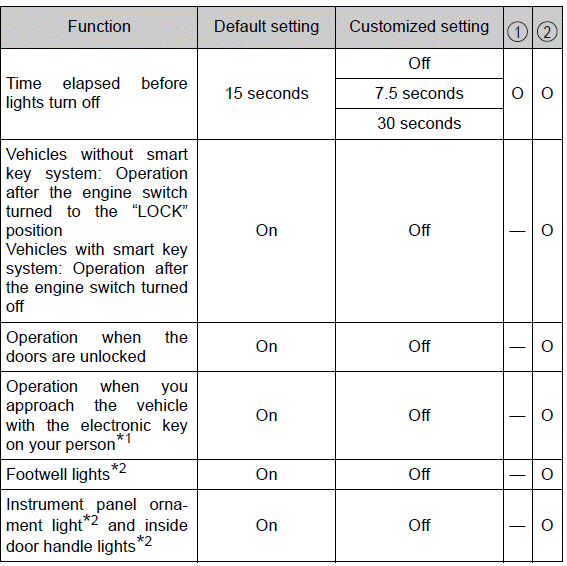

â– Illumination
*1: Vehicles with a smart key system
*2: If equipped
WARNING
â– During customization
As the engine needs to be running during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
â– During customization
To prevent battery discharge, ensure that the engine is running while customizing features.

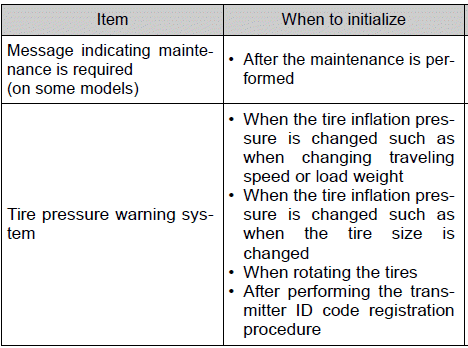

Items to initialize
The following items must be initialized for normal system operation after such cases as the battery being reconnected, or maintenance being performed on the vehicle:
