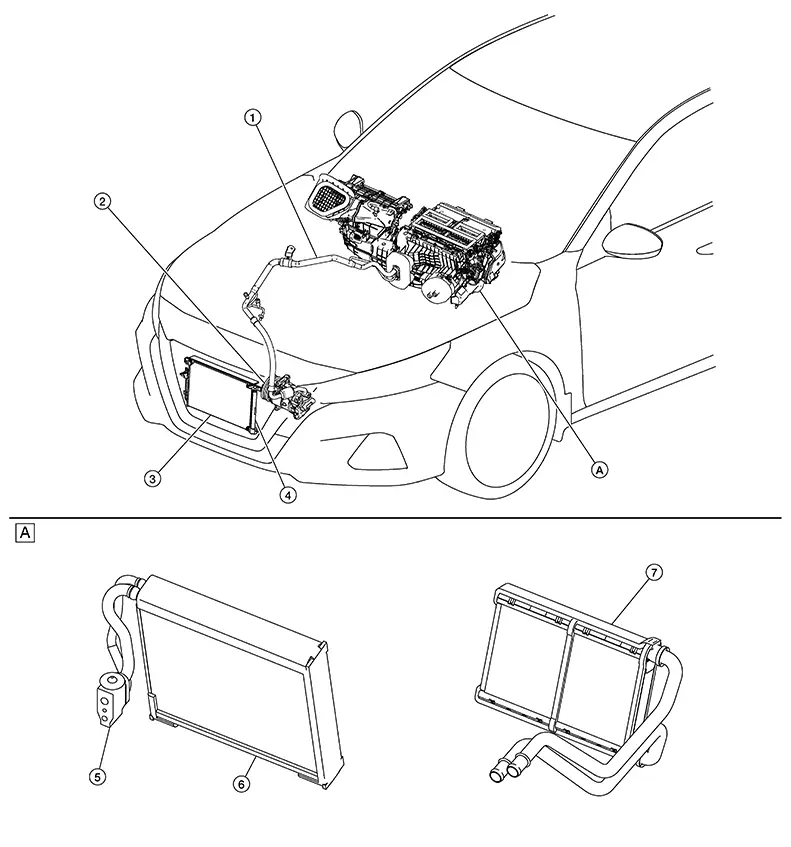

Nissan Sentra B18 (2020-2025) Service Manual: Component Part Location
|
1. |
Internal heat exchanger |
Refer to Internal Heat Exchanger. |
|
2. |
Compressor |
Refer to Compressor. |
|
3. |
Condenser |
Refer to Condenser. |
|
4. |
Liquid tank |
Refer to Liquid Tank. |
|
5. |
Expansion valve |
Refer to Expansion Valve. |
|
6. |
Evaporator |
Refer to Evaporator. |
|
7. |
Heater core |
Refer to Heater Core. |
|
A |
Heating and cooling unit assembly |
Refer to Heating and Cooling Unit Assembly. |
Heating and Cooling Unit Assembly
Heating and Cooling Unit Assembly
This unit combines the blower unit, heating unit,
and cooling unit into an assembly.
...
