Nissan Sentra B18 (2020-2025) Service Manual: Chassis Control Module (with Built in Steering Angle Sensor)

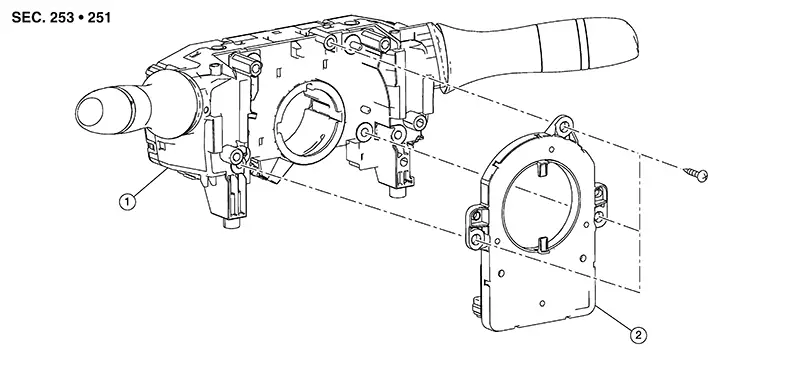

Exploded View
|
1. |
Combination switch |
2. |
Chassis control module (with built in steering angle sensor) |
Removal and Installation
CAUTION:
If replacing chassis control module (with built in steering angle sensor), perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE (WITH BUILT IN STEERING ANGLE SENSOR)". Refer to Description.
REMOVAL
Remove spiral cable assembly. Refer to Removal and Installation.

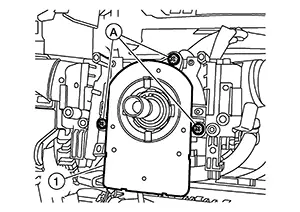

Disconnect
harness connector from chassis control module [with built in
steering angle sensor (1)].
Remove screws (A) and remove chassis control module (with built in steering angle sensor).
CAUTION:
Do not drop chassis control module (with built in steering angle sensor).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If replacing chassis control module (with built in steering angle sensor), perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE (WITH BUILT IN STEERING ANGLE SENSOR)". Refer to Description.
