Toyota Camry Owner's Manual (2023): Changing the windshield wiper rest position/Lifting the windshield wipers
When the windshield wipers are not being used, they retract to below the hood. To enable the windshield wipers to be lifted when parking in cold conditions or when replacing a windshield wiper insert, change the rest position of the windshield wipers to the service position using the wiper lever.

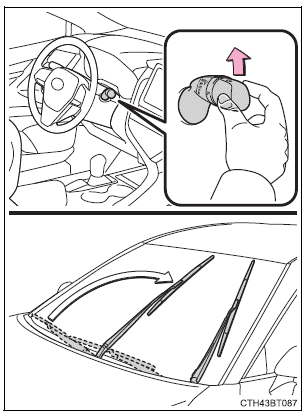

â– Raising the wipers to the service position
Within approximately 45 seconds
of turning the engine
switch off, move the wiper lever
to the
*1 or
*2
position and hold it for approximately
2 seconds or more.
The wipers will move to the service position.
*1: For U.S.A.
*2: For Canada

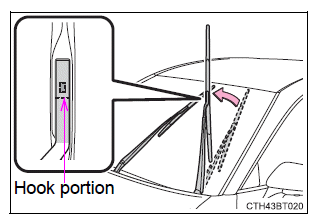

â– Lifting the windshield wipers
While holding the hook portion of the wiper arm, lift the windshield wiper from the windshield.
â– Lowering the windshield wipers to the retracted position
With the windshield wipers placed on the windshield, turn the engine switch to "ON" position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key system) and then move the wiper lever to an operating position. When the wiper switch is turned off, the windshield wipers will stop at the retracted position.
NOTICE
â– When lifting the windshield wipers
- Do not lift the windshield wipers when they are in the retracted position below the hood. Otherwise, they may contact the hood, possibly resulting in damage to a windshield wiper and/or the hood.
- Do not operate the wiper lever when the windshield wipers are lifted. Otherwise, the windshield wipers may contact the hood, possibly resulting in damage to the windshield wipers and/or hood.
