Toyota Camry Owner's Manual (2023): Automatic air conditioning system (with "SYNC" button)

Air outlets and fan speed are automatically adjusted according to the temperature setting.

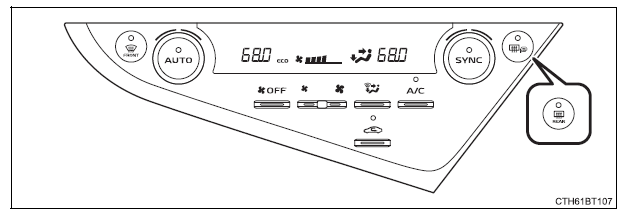

Air conditioning controls

Using the air conditioning system and defogger

■ Adjusting the temperature setting

To adjust the temperature setting, turn clockwise to increase the temperature and counterclockwise to decrease the temperature.

If is not pressed, the system will blow ambient temperature air or heated air.

The air conditioning system switches between individual and synchronized modes each time is pressed.

Synchronized modes (indicator on): The driver's side dial can be used to adjust the temperature for the driver's and front passenger's side. At this time, operate the front passenger's side dial to enter individual mode.

Individual modes (indicator off): The temperature for the driver's and front passenger's side can be adjusted separately.

■ Fan speed setting

To adjust the fan speed, press to increase the fan speed and to decrease the fan speed.

Press to turn the fan off.

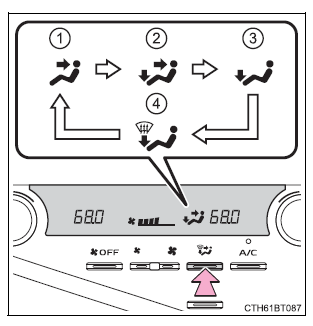

■ Change the airflow mode

To change the airflow mode, press .

The air outlets used are switched each time the button is pressed.

  1. Air flows to the upper body.
  2. Air flows to the upper body and feet.
  3. Air flows to the feet.
  4. Air flows to the feet and the windshield defogger operates.

Using the air conditioning system and defogger

Using automatic mode

1. Press.

The dehumidification function begins to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting.

2. Adjust the temperature setting.

3. To stop the operation, press .

■ Automatic mode indicator

If the fan speed setting or air flow modes are operated, the automatic mode indicator goes off. However, automatic mode for functions other than that operated is maintained.

Other functions

■ Switching between outside air and recirculated air modes

Press .

The mode switches between outside air mode (indicator off) and recirculated air mode (indicator on) each time is pressed.

■ Defogging the windshield

Defoggers are used to defog the windshield and front side windows.

Press .

The dehumidification function operates and fan speed increases.

Set the outside/recirculated air mode button to the outside air mode if the recirculated air mode is used. (It may switch automatically.) To defog the windshield and the side windows early, turn the air flow and temperature up.

To return to the previous mode, press again when the windshield is defogged.

■ Defogging the rear window and outside rear view mirrors

Vehicles without outside rear view mirror defoggers

A defogger is used to defog the rear window.

Press .

The defogger will automatically turn off after a period of time.

Vehicles with outside rear view mirror defoggers

Defoggers are used to defog the rear window, and to remove raindrops, dew and frost from the outside rear view mirrors.

Press .

The defoggers will automatically turn off after a period of time.
