Nissan Sentra B18 (2020-2025) Service Manual: 8ch Can Gateway
Removal and Installation
CAUTION:
If replacing 8CH CAN gateway, Perform "ADDITIONAL SERVICE WHEN REPLACING 8CH CAN GATEWAY". Refer to Work Procedure.
REMOVAL
Remove instrument panel assembly. Refer to Removal and Installation.
Remove side ventilator duct LH. Refer to Removal and Installation.
Release
harness retainer (A) and remove screw (B).

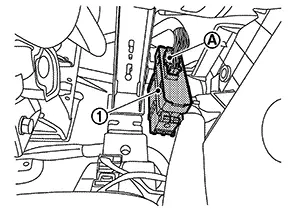

Disconnect
harness connector (A) and remove 8CH CAN gateway (1).
INSTALLATION
Installation is in the reverse order of removal.
