Nissan Sentra Service Manual: Unit disassembly and assembly
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

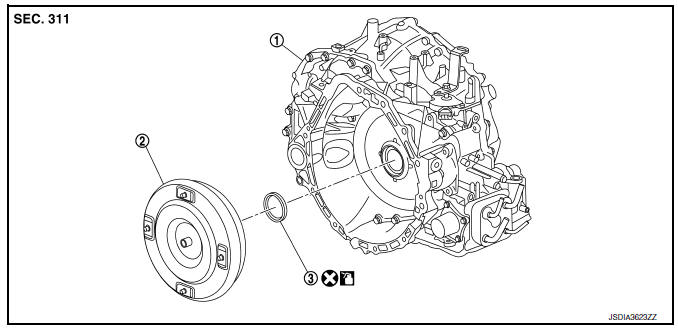

Exploded View
- Transaxle assembly
- Torque converter
- Converter housing oil seal
: Apply CVT Fluid
Disassembly
- Remove transaxle assembly.
- Remove torque converter.
CAUTION:
Do not damage the bushing on the inside of torque converter sleeve when removing torque converter.
- Remove converter housing oil seal using a suitable tool.
CAUTION:
Be careful not to scratch converter housing.
Assembly
Note the following, and install in the reverse order of removal.
CAUTION:
- Do not reuse converter housing oil seal.
- Apply CVT fluid to converter housing oil seal.
- Drive converter housing oil seal evenly using a drift so that converter housing oil seal protrudes by the dimension (A) respectively.
Dimension (A) : 13 В± 0.5 mm (0.051 В± 0.02 in)
NOTE:
Converter housing oil seal pulling direction is used as the reference.

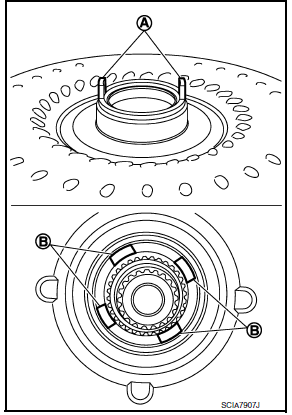

- Attach the pawl (A) of the torque converter to the drive sprocket hole (B) on the transaxle assembly side.
CAUTION:
- Rotate the torque converter for installing torque converter.
- Do not damage the bushing inside the torque converter sleeve when installing the converter housing oil seal.
Inspection
INSPECTION AFTER INSTALLATION
- After inserting a torque converter to the CVT, check dimension (A) with in the reference value limit.
B : Scale
C : Straightedge
Dimension (A) : Refer to TM-289, "Torque Converter".
Unit removal and installation
TRANSMISSION ASSEMBLY
Exploded View
Transaxle assembly
O-ring
CVT fluid charging pipe
CVT fluid charging pipe cap
Tightening must be done following the installation procedure. Re ...
Service data and specifications (SDS)
General Specification
CAUTION:
Use only Genuine NISSAN CVT Fluid NS-3. Never mix with other
fluid.
Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid
other than Genuine ...
