Toyota Camry (XV70): Turn signal lever

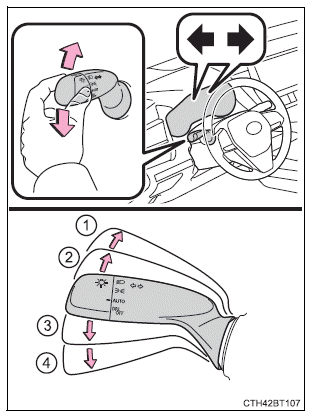

Operating instructions
- Right turn
- Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3 times. - Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3 times. - Left turn
■Turn signals can be operated when
Vehicles without a smart key system: The engine switch is in the "ON" position.
Vehicles with a smart key system: The engine switch is in IGNITION ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
