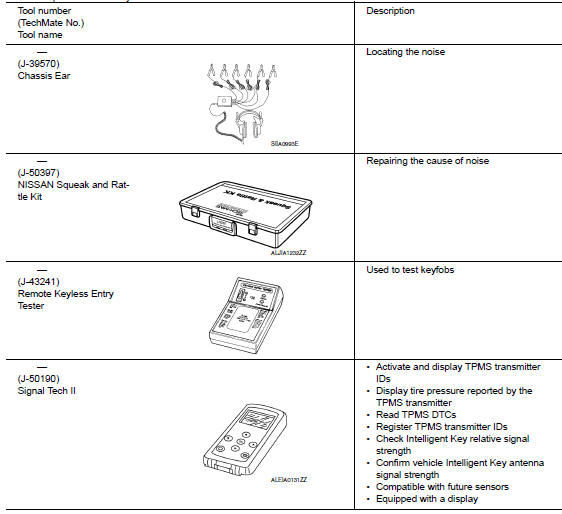

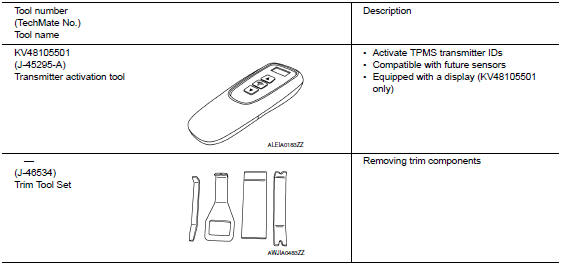

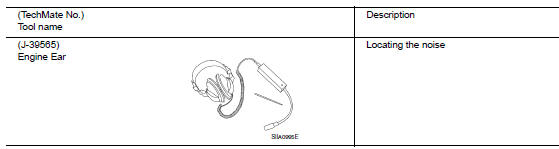

Special Service Tools
The actual shape of the tools may differ from those illustrated here.


Commercial Service Tools

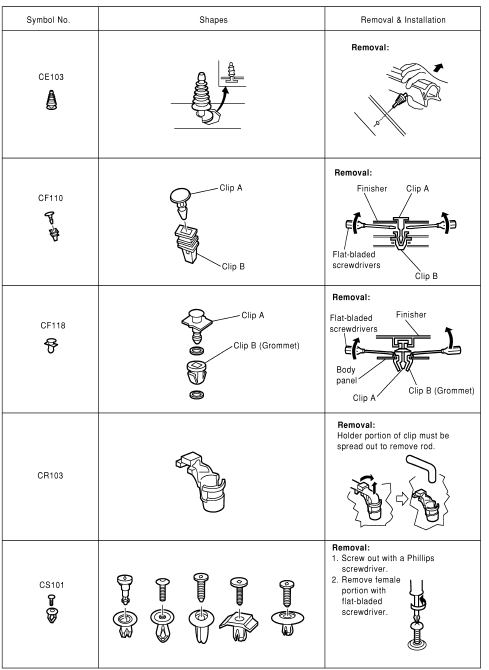

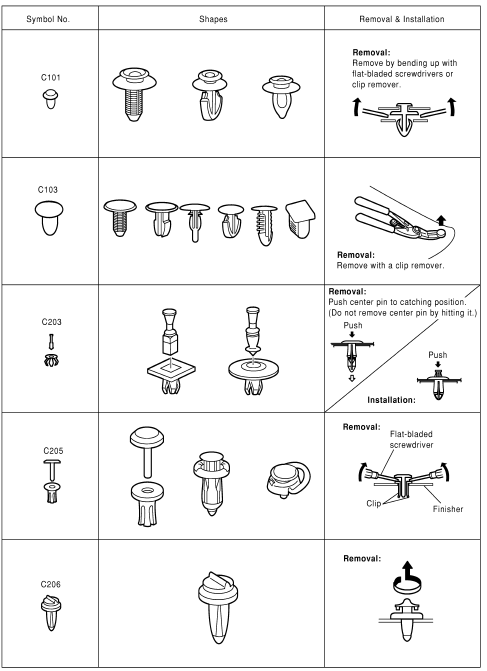

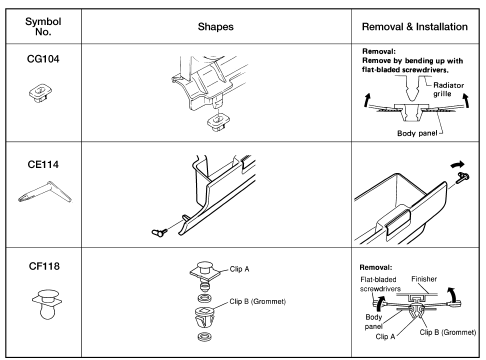

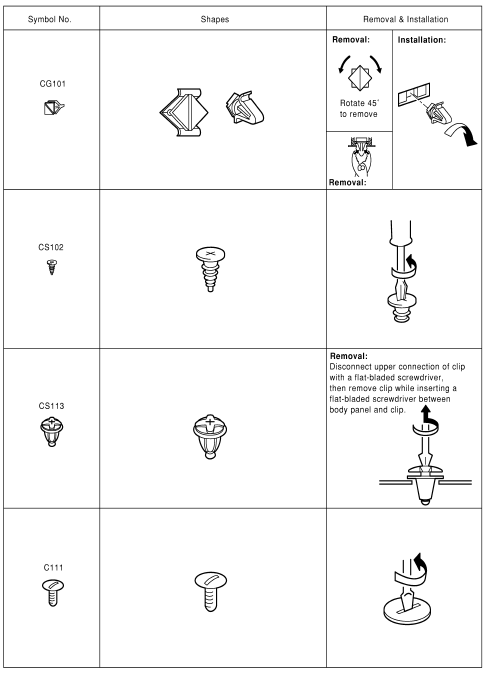

Clip list
Descriptions for Clips
Replace any clips which are damaged during removal or installation.




Precaution
System descriptionHandling precautions for plastics
Precautions for plastics
When repairing and painting a portion of the body adjacent to plastic
parts, consider their characteristics
(influence of heat and solvent) and remove them if necessary or take
suitable measures to protect them.
Plastic parts should be repaired and painted ...
Door mirror remote control switch
Removal and Installation
Removal
Remove the instrument finisher D. Refer to IP-14, "Exploded View".
Using suitable tool (a) release the pawls and remove the door mirror
remote control switch (2) from the
switch bracket (1).
Pawl
Installation
Installation is in the rev ...
Unit disassembly and assembly
Center console assembly
Exploded View
Center console upper finisher
Center console side finisher (RH)
Center console side finisher (LH)
Center console side finisher screw cover
(LH/RH)
Center console assembly
Center console screw cover (LH/RH)
Center console rear finisher
C ...
