Nissan Sentra Owners Manual: Passenger compartment

CAUTION


CAUTION

Never use a fuse of a higher or lower amperage rating than specified on the fuse box cover. This could damage the electrical system or cause a fire.

If any electrical equipment does not operate, check for an open fuse.

NOTE:

The fuse box is located on the driver’s side of the instrument panel.

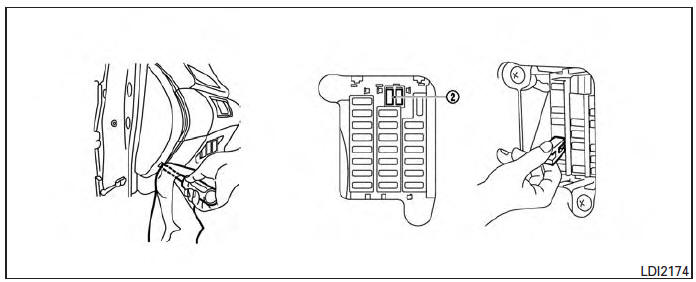

  1. Be sure the ignition switch and the headlight switch are OFF.
  2. Remove the fuse box cover with a suitable tool. Use a cloth to avoid damaging the trim.
  3. Locate the fuse that needs to be replaced.
  4. Remove the fuse with the fuse puller 2 .

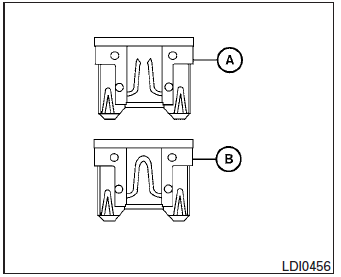

  1. If the fuse is open A , replace it with an equivalent good fuse B .
  2. Push the fuse box cover to install.

If a new fuse also opens, have the electrical system checked and repaired by a NISSAN dealer.

Extended storage switch

If any electrical equipment does not operate,


If any electrical equipment does not operate, remove the extended storage switch and check for an open fuse.

NOTE:

The extended storage switch is used for long term vehicle storage. Even if the extended storage switch is broken it is not necessary to replace it. Replace only the open fuse in the switch with a new fuse.

How to replace the extended storage switch:

  1. To remove the extended storage switch, be sure the ignition switch is in the OFF or LOCK position.
  2. Be sure the headlight switch is in the OFF position.
  3. Remove the fuse box cover.

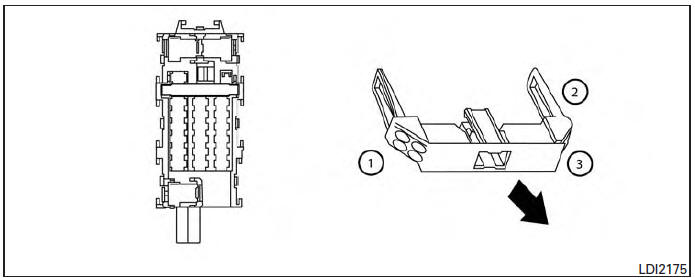

  4. Pinch the locking tabs 1 and 2 found on each side of the storage switch.
  5. Pull the storage switch straight out from the fuse box 3 .
