Common item

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

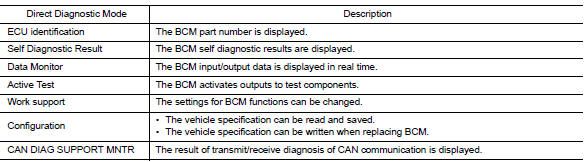

BCM can perform the following functions.

Wiper


Wiper

Wiper : consult function (bcm - wiper)

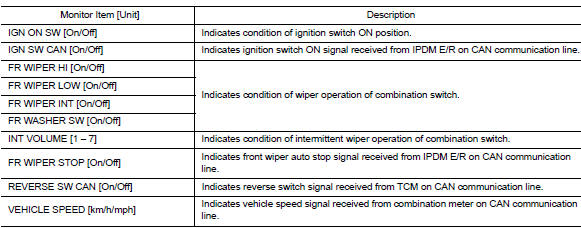

DATA MONITOR

ACTIVE TEST


ACTIVE TEST

WORK SUPPORT


WORK SUPPORT

* : Initial setting


* : Initial setting
